REDCATT 16TN - 4 Ohm

REDCATT 16TN - 4 Ohm Tweeter

Key Features

• small systems with limited baffle space
• working range up to 20kHz
• lightweight. ideal for portable products.

Design Notes

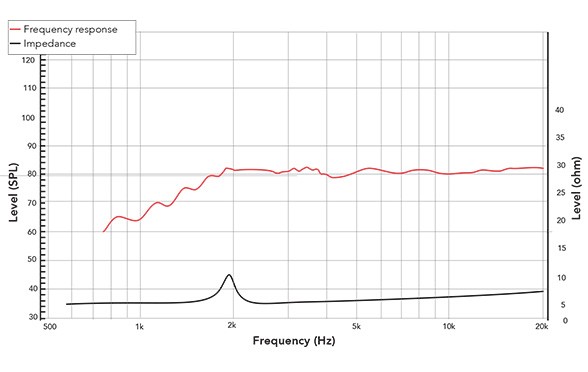

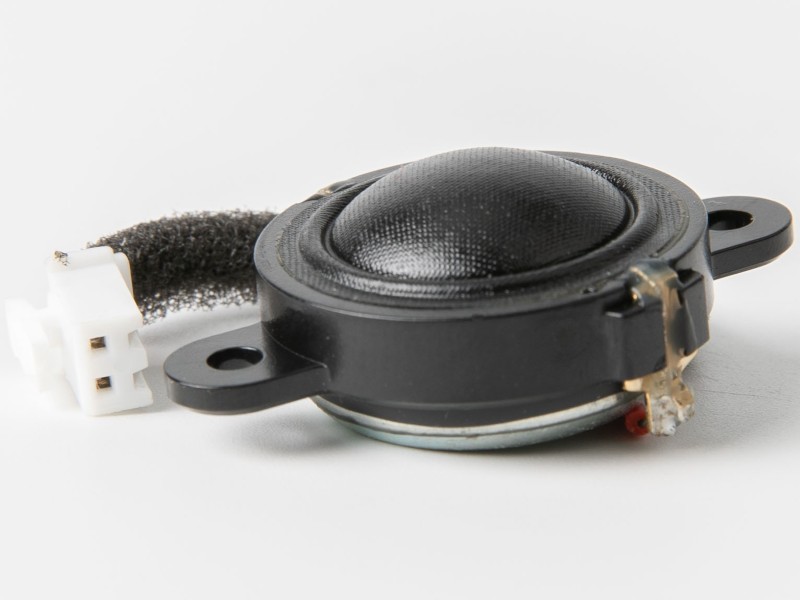

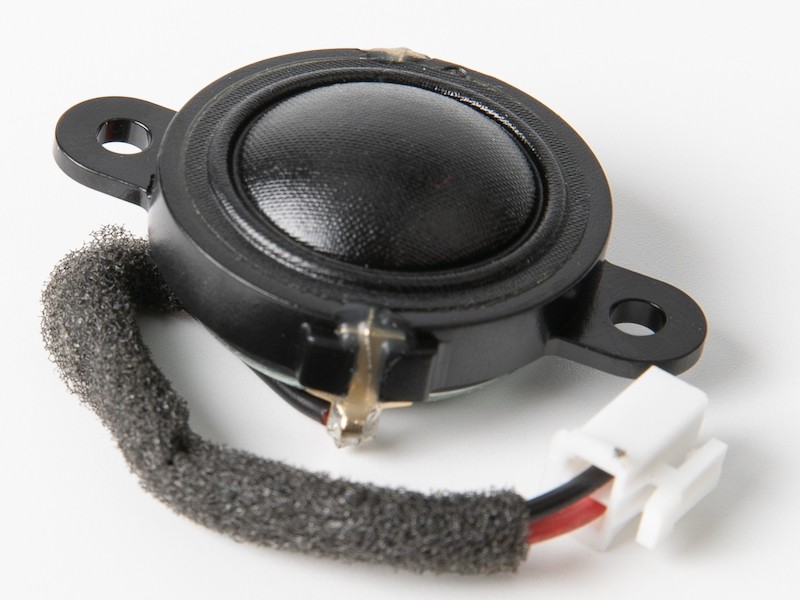

The 16TN tweeter was designed with a small form factor in mind. It finds its best use in applications where the baffle space is limited. It is a high performance, high frequency device with extended HF frequency range well over 20kHz. . Diaphragm Assembly The driver features a 16mm Poly-silk diaphragm formed as single piece with suspension. The dome rests on plastic carrier that also consists two mounting holes. The dome is carefully attached to a 16mm aluminum former voice coil. Further, a common sized connector is used. Optionaly, the connector can be replaced by another type that would suit the best your application, or completelly replaced by conventional fast-on terminals. Magnetic system uses high-temperature grade neodymium, ensuring the longevity of this tweeter.

Specifications
General Specs

• Nominal Diameter: 0,6 inch
• Rated Impedance: 4 Ohm

Power Handling

• AES Power: 5 Watts
• Program Power: 10 Watts

Voice Coil

• Diameter: 0,6 inch
• Winding wire : CCAW
• Former: Aluminum
• Winding height: 2 mm

T/S Parameters

• Resonant frequency: 2000Hz
• Re: 4ohm
• Qes: n/a
• Qms: n/a
• Qts: n/a
• VAS: n/a
• Sd: n/a
• Mms: n/a
• BL: n/a
• Le: n/a
• Sensivity: 82 dB

Design Details

• Surround material: Silk
• Cone material: Silk
• Spider: n/a
• Plate thickness: 2 mm
• Peak to peak linear cone displacement: n/a mm
• Overall diameter: 26 mm
• Bolt circle diameter: 31,8 mm
• Baffle cutout dia: n/a mm
• Number of mounting holes: 2
• Depth (flange to rear): 13,5 mm
• Net weight: 25g
