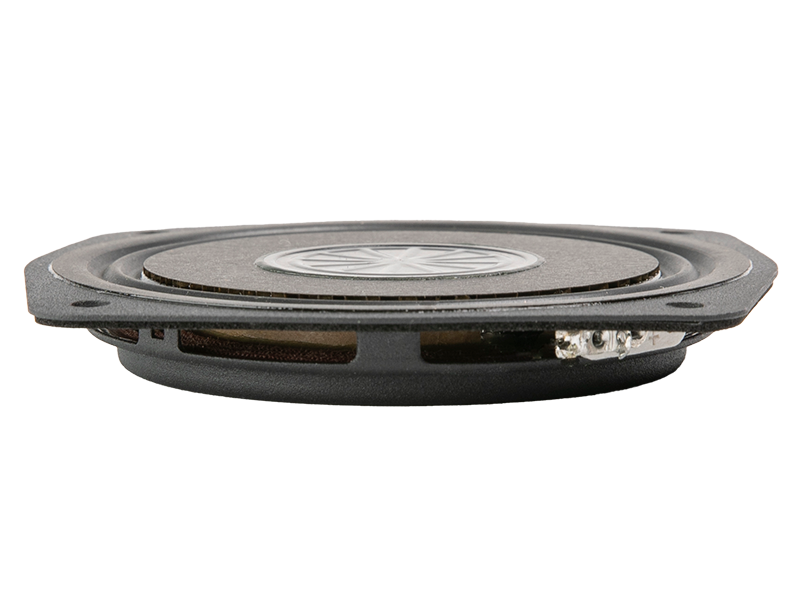

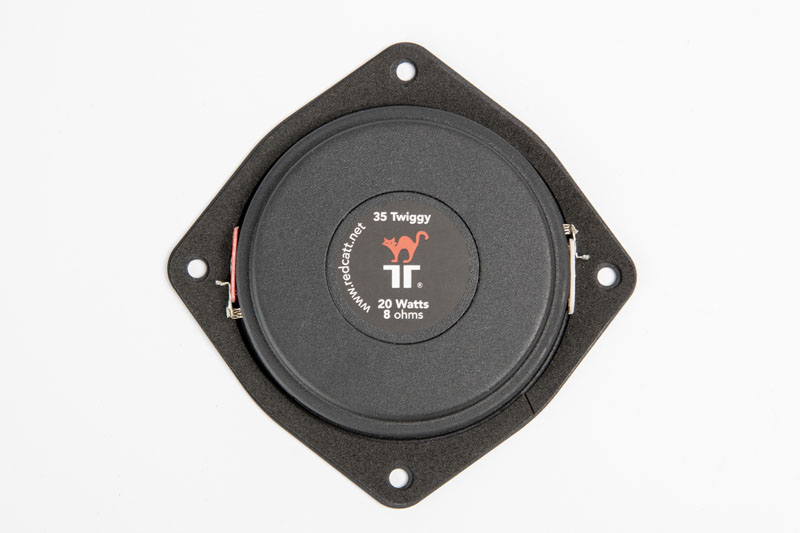

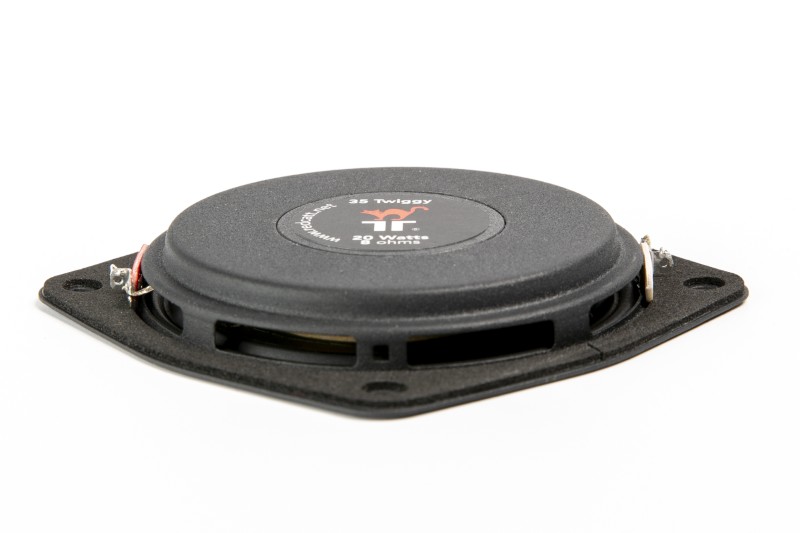

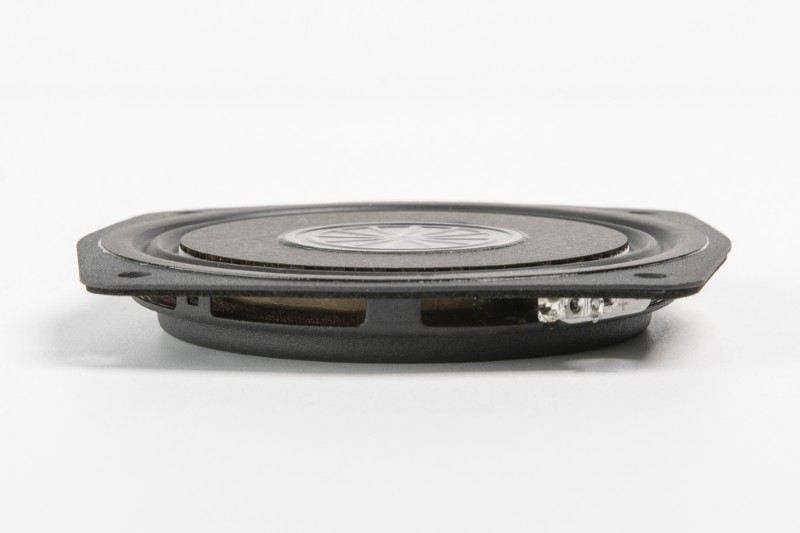

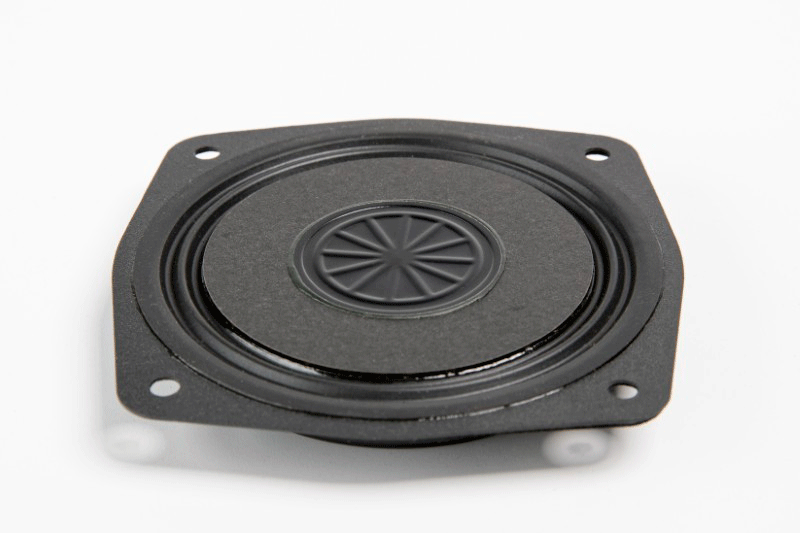

Introducing the 35Twiggy mid-woofer, designed for ultra-thin applications. With its remarkably slim 10.15mm mounting depth and maximum 3.8mm cone excursion, this driver delivers exceptional performance. The 3-layer honeycomb cone ensures optimal functionality across all ranges. Boasting a power handling capacity of 20 watts, the 35Twiggy is a standout in our Twiggy product line. Designed with our patented technology, Twiggy drivers offer unparalleled design flexibility for unique product shapes and space-constrained environments. Experience world-class audio innovation with the 35Twiggy.
Specifications: General specs Nominal Diameter: 3.5 in. Rated Impedance: 8 Ohm
Power handling AES Power: 10 Watts Program Power: 20 Watts
Voice Coil Diameter: 1.3 in. Winding wire: CCAW Former: Aluminum Winding height: 3 mm

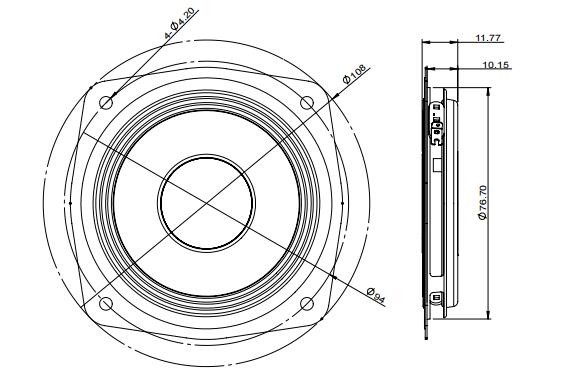

Design details Surround Material: Rubber Cone material: Paper Honeycomb Spider: Nomex Plate thickness: 2.5 mm Peak to peak linear cone Displacement 3.8 mm Overall diameter: 90*90 mm Bolt circle diameter: 94 mm Baffle cutout dia.: 77 mm Number of mounting holes: 4 Depth (flange to rear): 10.15 mm Net weight: 0.1 kg
