REDCATT 141FCD - 4 Ohm

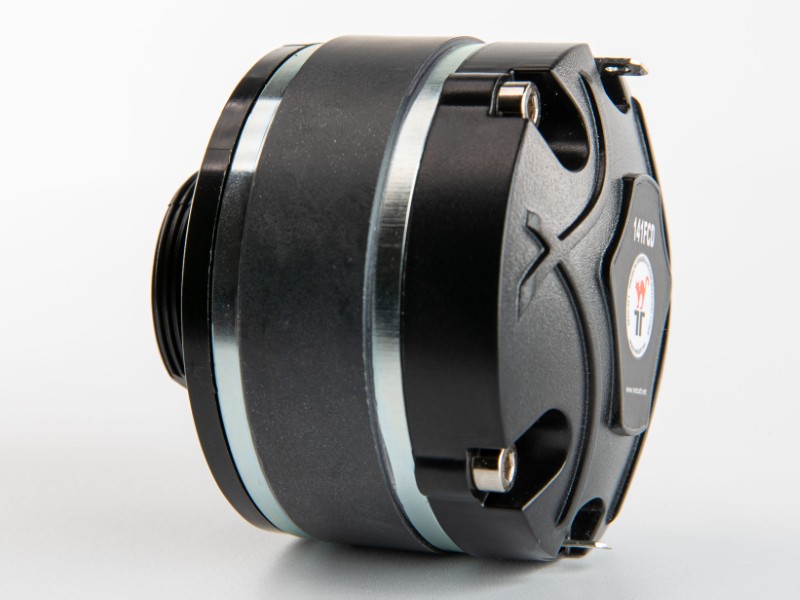

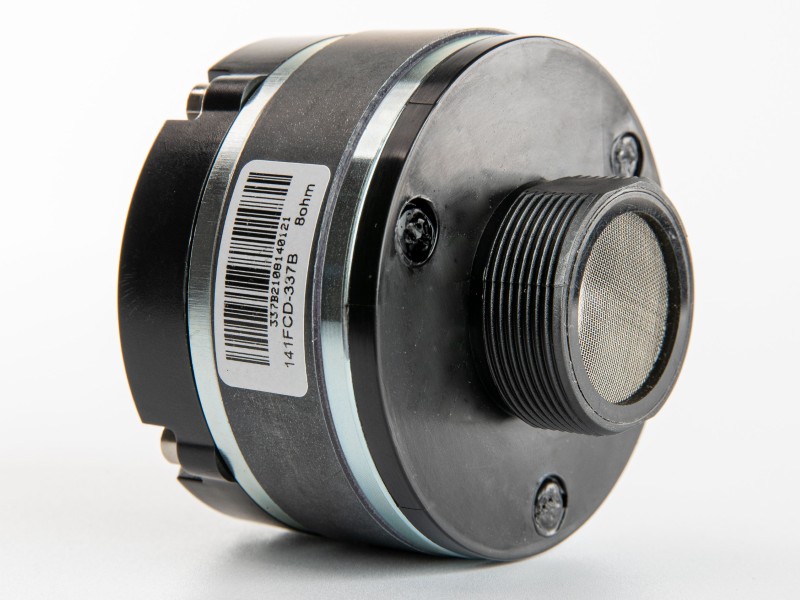

REDCATT 141FCD - 4 Ohm 1" Compression Driver

Key Features

• Low resonant frequency
• Mounting plastic adapter with thread
• For applications with limited space

Design Notes

The 141FCD compression driver is a high performance high frequency device ideal for professional loudspeaker systems. It’s core is designed based on our very 140FCD model. In fact the dome assembly is shared between these two models. The driver’s ferrite based magnetic circuit was modified to fit applications with a limited space and lower budget. Furthermore, we have added mounting adapter with 1 3/8” 18TPI thread to easy and fast mounting onto the horn throats that incorporate this thread. Diaphragm Assembly The driver features a 36mm Polyimide diaphragm formed as single piece with Polyimide suspension. The suspension has designed and FEM optimized venting features to lover the harmonic distortion. The dome is carefully attached to a high temperature Nomex voice coil former that withstands the long term power characteristics typically seen in professional applications. The acoustic output exits through a radial phase plug and a 1.0 inch throat aperture. Nominal sensitivity is 105 dB 1watt / 1 meter. REDCATT uses state of the art adhesives in all assembly steps. Our voice coil to dome bonding is unique process, developed to greatly improve the power handling capabilities. REDCATT unique and precise adhesives dispensing, combined with our in-house developed dome treatments are further improving the long term reliability of this product.

Specifications
General Specs

• Horn Exit Diameter: 1"
• Diameter: 1,4 inch
• Rated Impedance: 4 Ohm

Power Handling

• AES Power: 30 Watts
• Program Power: 60 Watts

Voice Coil

• Diameter: 1,4 inch
• Winding wire : CCAR
• Former: kapton
• Winding height: 2,3 mm

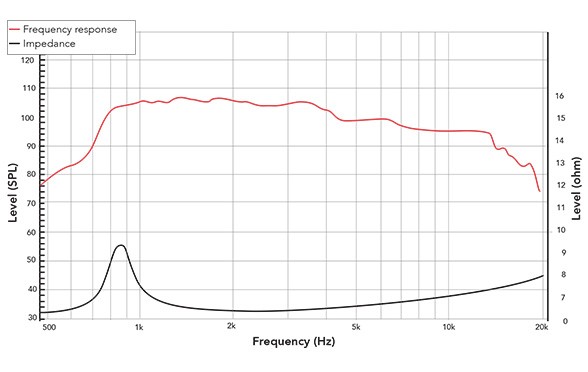

T/S Parameters

• Resonant frequency: 900Hz
• Re: 2.5ohm
• Qes: n/a
• Qms: n/a
• Qts: n/a
• VAS: n/a
• Sd: n/a
• Mms: n/a
• BL: 634g
• Le: n/a
• Sensivity: 105 dB

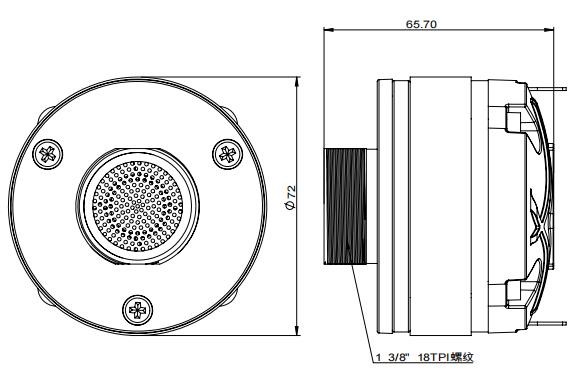

Design Details

• Surround material: Polymer
• Cone material: Polymer
• Spider: n/a
• Plate thickness: 2,52 mm
• Peak to peak linear cone displacement: n/a mm
• Overall diameter: 72 mm
• Bolt circle diameter: Thread 1-3/8” mm
• Baffle cutout dia: n/a mm
• Number of mounting holes: n/a
• Depth (flange to rear): 65,7 mm
• Net weight: 634g
