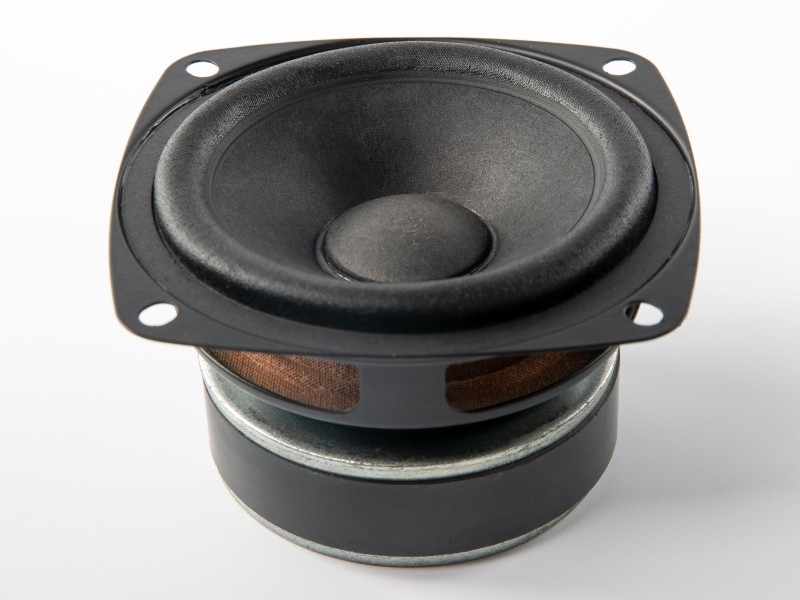

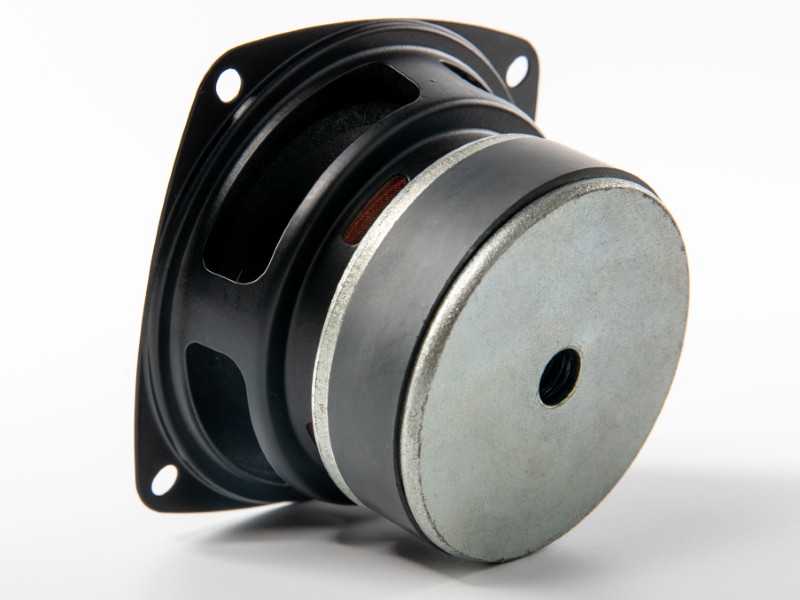

REDCATT 35FR - 8 Ohm

REDCATT 35FR-406B - 8 Ohm Full-range

Key Features

• EXTENDED FREQUENCY RESPONSE
• BL symmetry
• fem optimized paper cone and surround

Design Notes

35FR was developed as full-range ferrite magnet driver. It has an excellent HF extension and provides good level of LF performance. The driver was designed for usage in sealed speaker systems. It could be in column speakers, 2-way or 1-way speakers. It is also possible design a speaker system with a passive radiator to further extend the low frequency range. Voice coil is wound with CCAW hi temperature wire directly on the Kapton former, ensuring good power handling and high temperature stability. This driver brings good balance between performance and cost. Depending on intended usage, we can deliver the driver either as 4, 8 or 16 ohm version.

Specifications
General Specs

• Nominal Diameter: 3,5 inch
• Rated Impedance: 8 Ohm

Power Handling

• AES Power: 20 Watts
• Program Power: 40 Watts

Voice Coil

• Diameter: 1 inch
• Winding wire : CCAW
• Former: kapton
• Winding height: 8,7 mm

T/S Parameters

• Resonant frequency: 128Hz
• Re: 6.3ohm
• Qes: 0,68
• Qms: 7,76
• Qts: 0,63
• VAS: 1.14L
• Sd: 40.7cm2
• Mms: 3.1g
• BL: 4.8
• Le: 0,25
• Sensivity: 88,59 dB

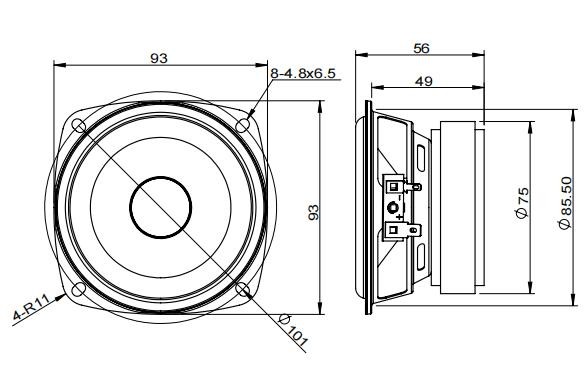

Design Details

• Surround material: Fabric
• Cone material: Paper
• Spider: Nomex
• Plate thickness: 4 mm
• Peak to peak linear cone displacement: 6,35 mm
• Overall diameter: 93 mm
• Bolt circle diameter: 101 mm
• Baffle cutout dia: 85,5 mm
• Number of mounting holes: 4
• Depth (flange to rear): 49 mm
• Net weight: 0.57kg
