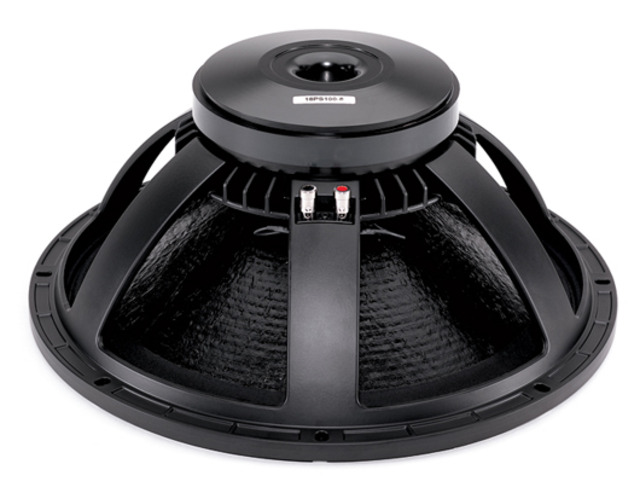

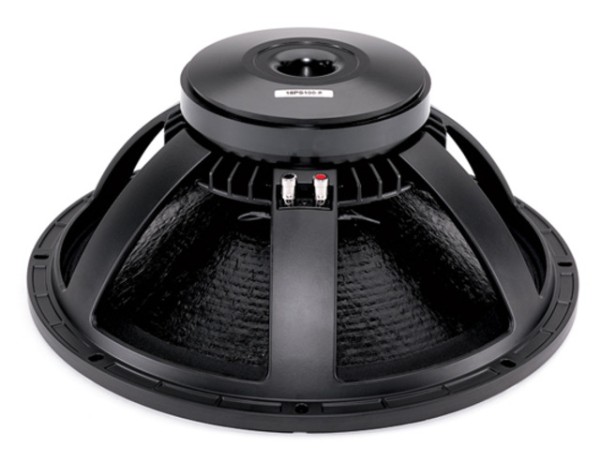

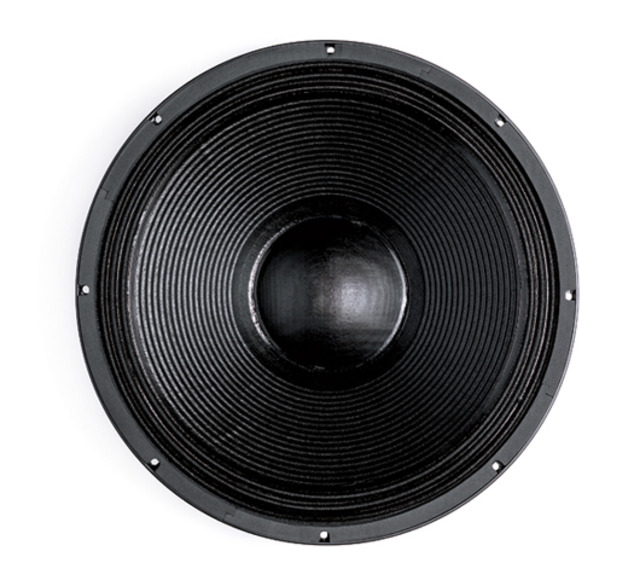

B&C 18PS100 - 8 Ohm

B&C 18PS100 - 18" 700W 8 Ohm

• 1400 W continuous program power capacity
• 100 mm (4 in) copper voice coil
• 30 - 1000 Hz response
• 95.5 dB sensitivity
• Double silicone spider with optimized compliance

Specifications:


• Nominal diameter 460 mm (18.0 in)
• Nominal impedance 8 Ohms
• Minimum impedance 6.3 Ohms
• Nominal power handling 700 W
• Continuous power handling 1400 W
• Sensitivity (1W/1m) 96.0 dB
• Frequency range 30 - 1000 Hz
• Voice coil diameter 100 mm (4.0 in)
• Winding material Copper
• Former material Glass Fibre
• Winding depth 21 mm (0.83 in)
• Magnetic gap depth 11 mm (0.4 in)
• Flux density 1.05 T

• Fs 30 Hz
• Re 5 Ohms
• Qes 0.41
• Qms 4.6
• Qts 0.39
• Vas 245.0 dm3 (8.6 ft3)
• Sd 1210.0 cm2 (187.6 in2)
• Reference Efficiency 1.6 %
• Xmax 8.0 mm
• Xvar 8.0 mm
• Mms 202 g
• Bl 22.5 Txm
• Le 2.1 mH
• EBP 73

• Overall diameter 460 mm (18.0 in)
• Bolt circle diameter 440 mm (17.3 in)
• Baffle cutout diameter 422.0 mm (16.6 in)
• Depth 197 mm (7.75 in)
• Flange and gasket thickness 16 mm (0.62 in)
• Air volume occupied by driver 9.5 dm3 (0.33 ft3)
• Net weight 10.5 kg (23.1 lb)
• Shipping weight 11.9 kg (26.2 lb)
• Shipping box 500x500x250 mm (19.7x19.7x9.8 in)
