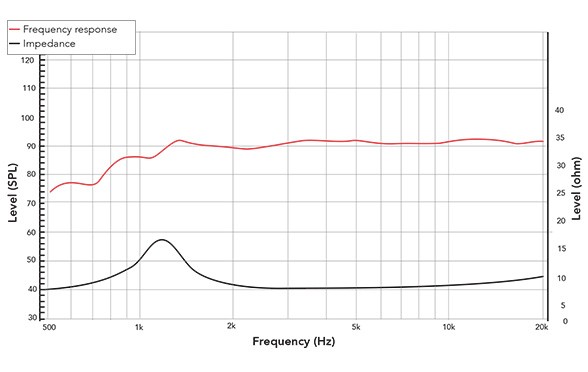

smooth frequency response, working range from 1,200Hz ~ 25kHz
high powerhandling

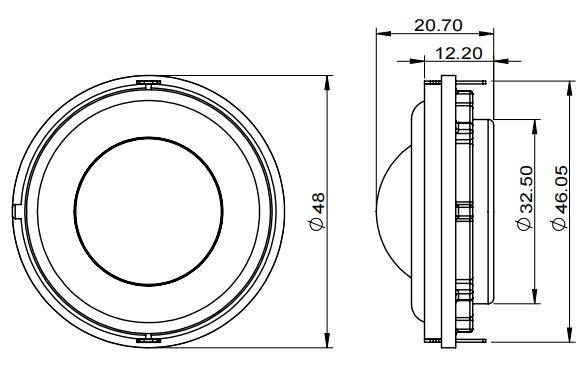

very compact size, shallow depth
Design Notes

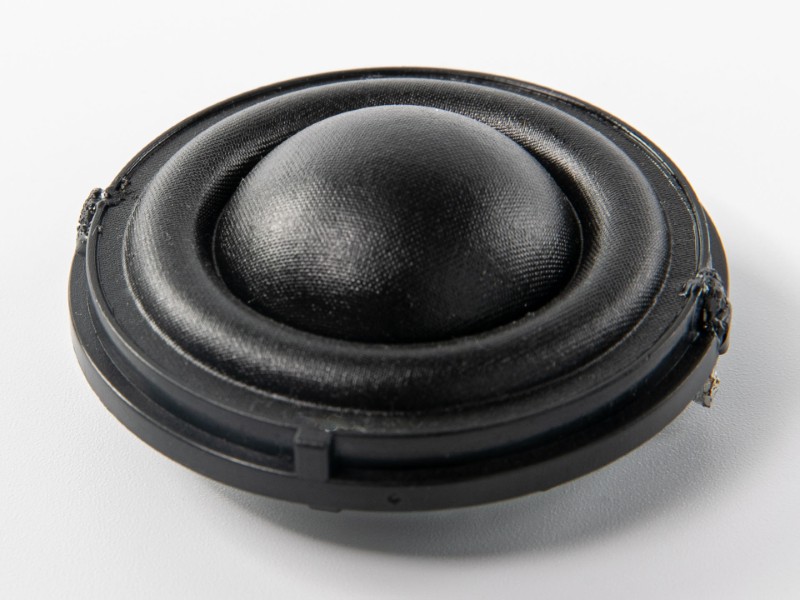

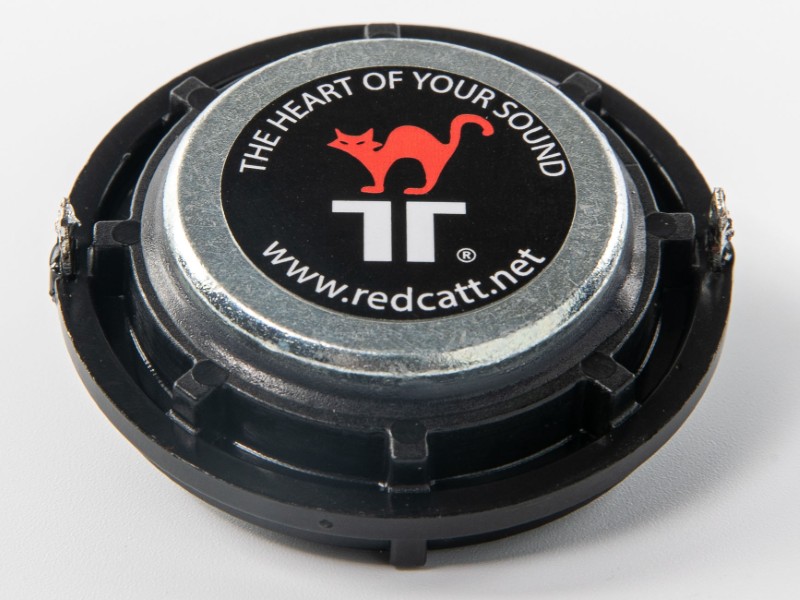

33TN tweeter was developped for system applications where high SPL and high power handling is required. The tweeter is supplied as “bullet” in general terms, however based upon a request, our engineers can recommend or design waveguide for your application. The tweeter sports large surround and unsually tall dome. This combination provides excellent low freqnecy behaviour and smooth frequency response. The magnetic structer utilizes high grade neodymium magnets and u-cup style steel. Overall the structe delivers very high performance with consistent BL field. Connection is made with solder lugs. Based upon request, we can deliver this tweeter with soldered wire harness as per your specifications. Intended applications are array systems, hi-SPL 2-way and multiway speaker systems and autmotive applications.
