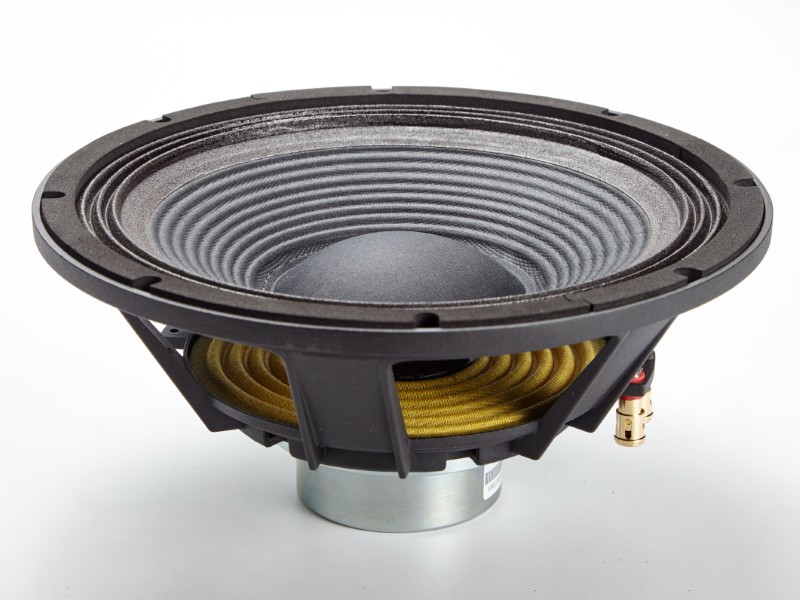

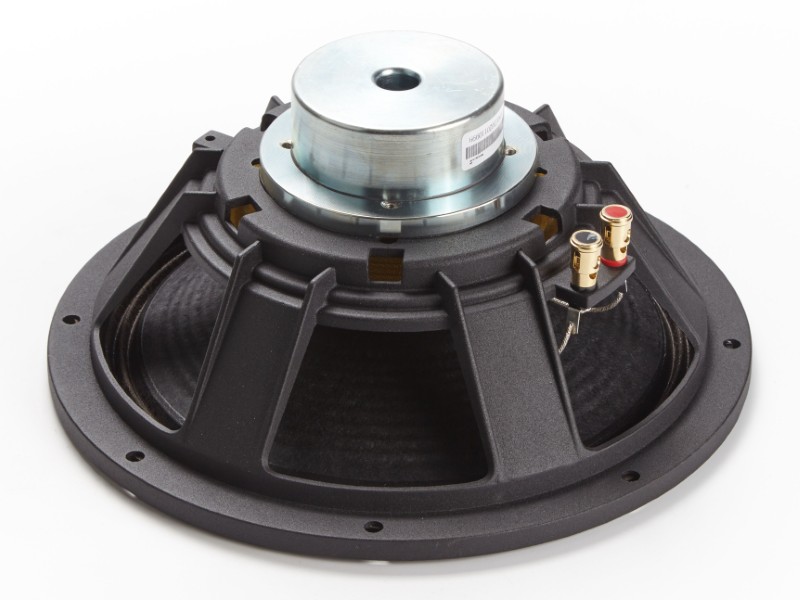

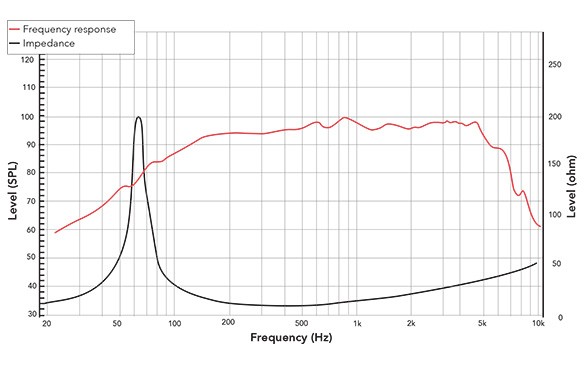

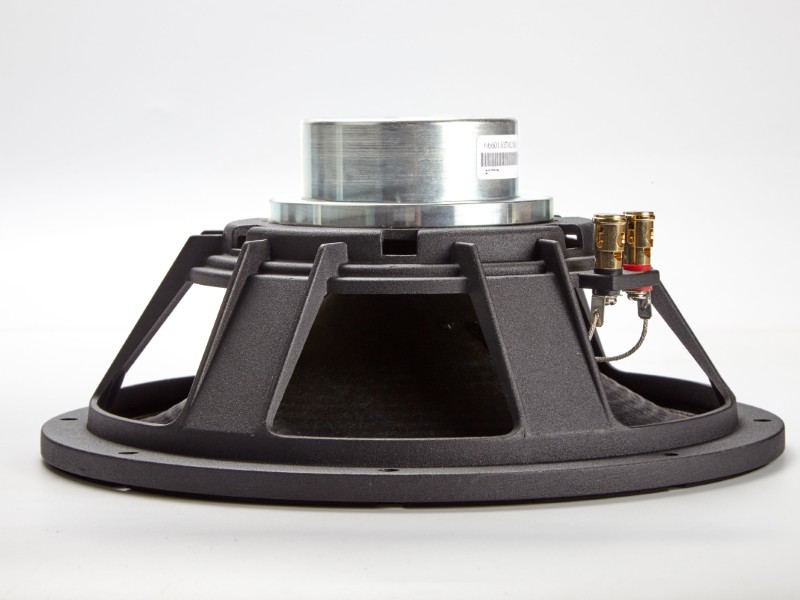

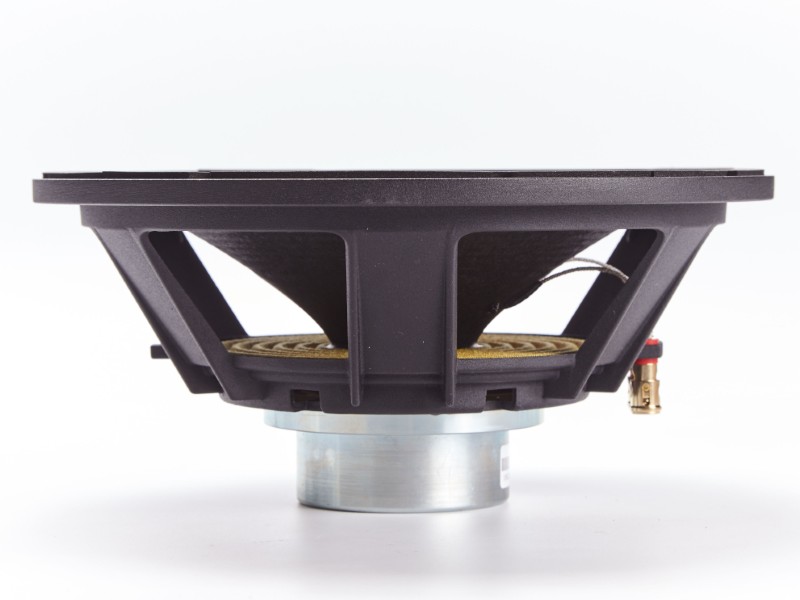

The 101NPM is a high efficiency, (96 dB 1watt / 1 meter) 10-inch mid-woofer with incredibly linear frequency response characteristics, high power handling capability, while generating ultra low harmonic distortion artifacts. The 101NPM uses a lightweight glass fiber loaded cone assembly along with a high excursion triple roll surround. This combination provides a lightweight, yet strong, piston, high efficiency and a peak to peak maximum excursion of 8mm (0.31in). Magnetic Circuit REDCATT engineers have developed a ultra lightweight, inside neodymium slug based magnetic circuit, capable of delivering the highest level of performance, providing a consistent, high integrity magnetic flux gap, ultra low distortion characteristic and high efficiency cooling system. The magnetic structure has integrated two aluminum shorting rings. The magnetic circuit design is optimized to generate the minimum amount of flux modulation, providing exceptional stability.
