REDCATT 8FHW - 4 Ohm

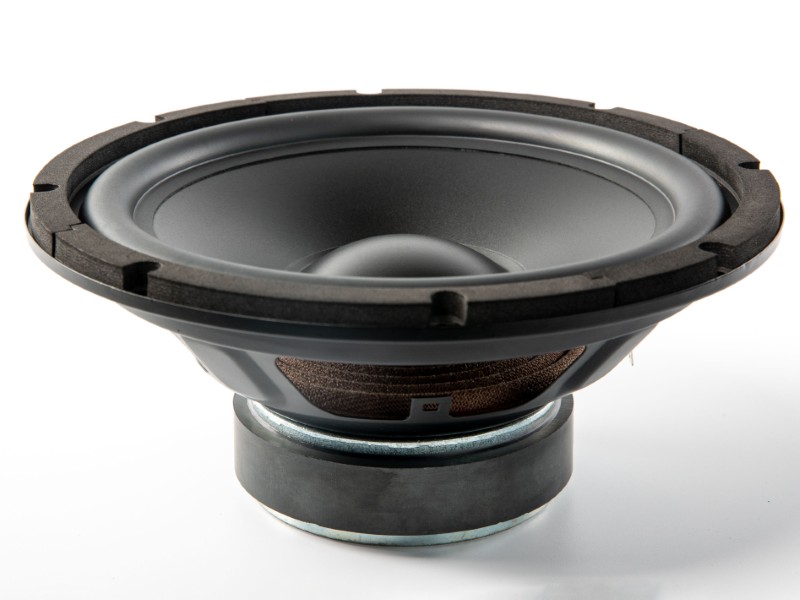

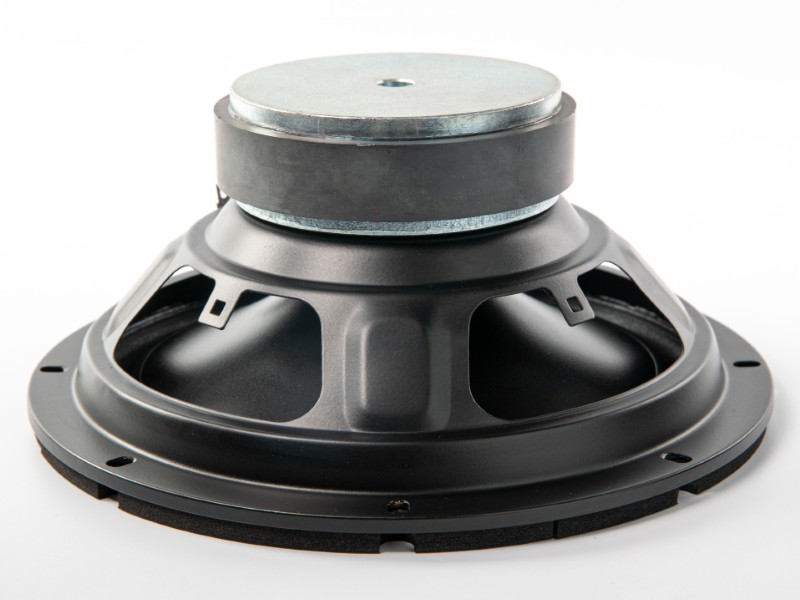

REDCATT 8FHW - 4 Ohm Mid-woofer

Key Features

• Mid-woofer designed for outdoor or indoor applications
• UV stabilized Polypropylene cone and rubber surround
• Components are treated to survive harsh outdoor environments

Design Notes

8FHW was designed as mid-woofer, with extended frequency response to low frequencies, as well as good extension into the mid-frequencies. All parts are intensively treated for outdoor usage, cone, surround material are with UV stabilizers. The used adhesives make sure the driver is waterproof. The cone utilizes polypropylene material and rubber surround. This combination sports sizable amounts of low frequencies and good behavior in the higher mid-frequencies.

Specifications
General Specs

• Nominal Diameter: 8 inch
• Rated Impedance: 4 Ohm

Power Handling

• AES Power: 100 Watts
• Program Power: 200 Watts

Voice Coil

• Diameter: 1,2 inch
• Winding wire : Copper
• Former: Aluminum
• Winding height: 15,3 mm

T/S Parameters

• Resonant frequency: 36Hz
• Re: 3.3ohm
• Qes: 0,38
• Qms: 4,53
• Qts: 0,35
• VAS: 34.3L
• Sd: 213.8cm2
• Mms: 36.59g
• BL: 8.6
• Le: 0,89
• Sensivity: 89,12 dB

Design Details

• Surround material: Rubber
• Cone material: PP
• Spider: Nomex
• Plate thickness: 8 mm
• Peak to peak linear cone displacement: 11,65 mm
• Overall diameter: 209,5 mm
• Bolt circle diameter: 197 mm
• Baffle cutout dia: 184,5 mm
• Number of mounting holes: 8
• Depth (flange to rear): 86,5 mm
• Net weight: 1.5kg
