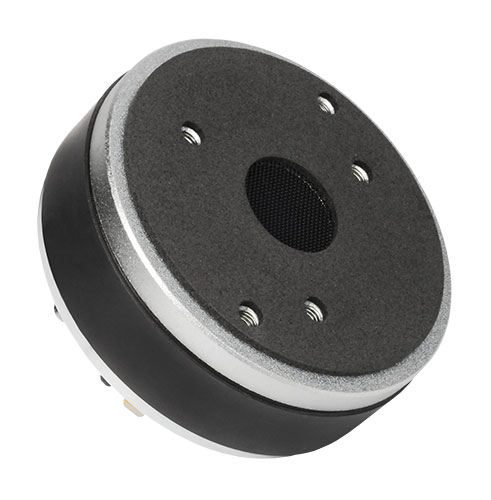

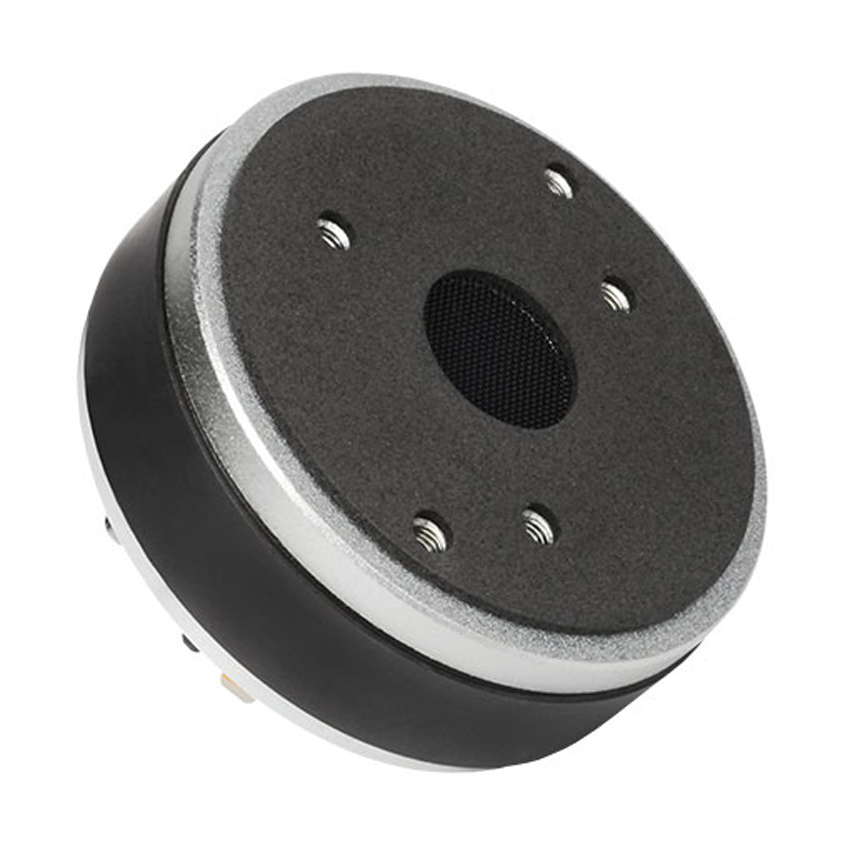

Faital Pro HF103 - 16 Ohm

Nominal Specifications

• Throat Diameter 1", 25.4 mm
• Overall Diameter 3.94", 100 mm
• Depth 2.17", 55 mm
• 180° Mounting Holes Diameter (2xM5) 2.99", 76 mm

Electrical Specifications

• Nominal Impedance 16 Ohm
• Minimum Impedance 13.2 Ohm
• Re 10.2 Ohm
• Minimum Crossover Frequency* 1.3 kHz
• Sensitivity (1W/1m)** 107 dB
• Frequency Range 1 - 20 kHz
• Nominal Power Handling*** 60 W
• Maximum Power Handling**** 120 W
• Diaphragm Material Ketone Polymer
• Voice Coil Diameter 1.73", 44 mm
• Winding Depth 0.09", 2.3 mm
• Former Material Kapton
• Magnetic Gap Depth 0.11", 2.85 mm
• Flux Density 1.5 T
• Winding Material Copper Clad Aluminium

Notes

• *12 dB/oct or higher slope high-pass filter
• **Averaged within the frequency range
• ***Test made for 2 hours with Pink Noise signal (6 dB Crest Factor) from minimum crossover frequency. Power calculated on rated minimum impedance. Driver mounted on aluminium horn.
• ****Maximum power is defined as 3dB greater than nominal power
